VINTAGE ROCKWELL INTERNATIONAL / NORTH AMERICAN AIRCRAFT AEROSPACE BLUEPRINTS – LOT

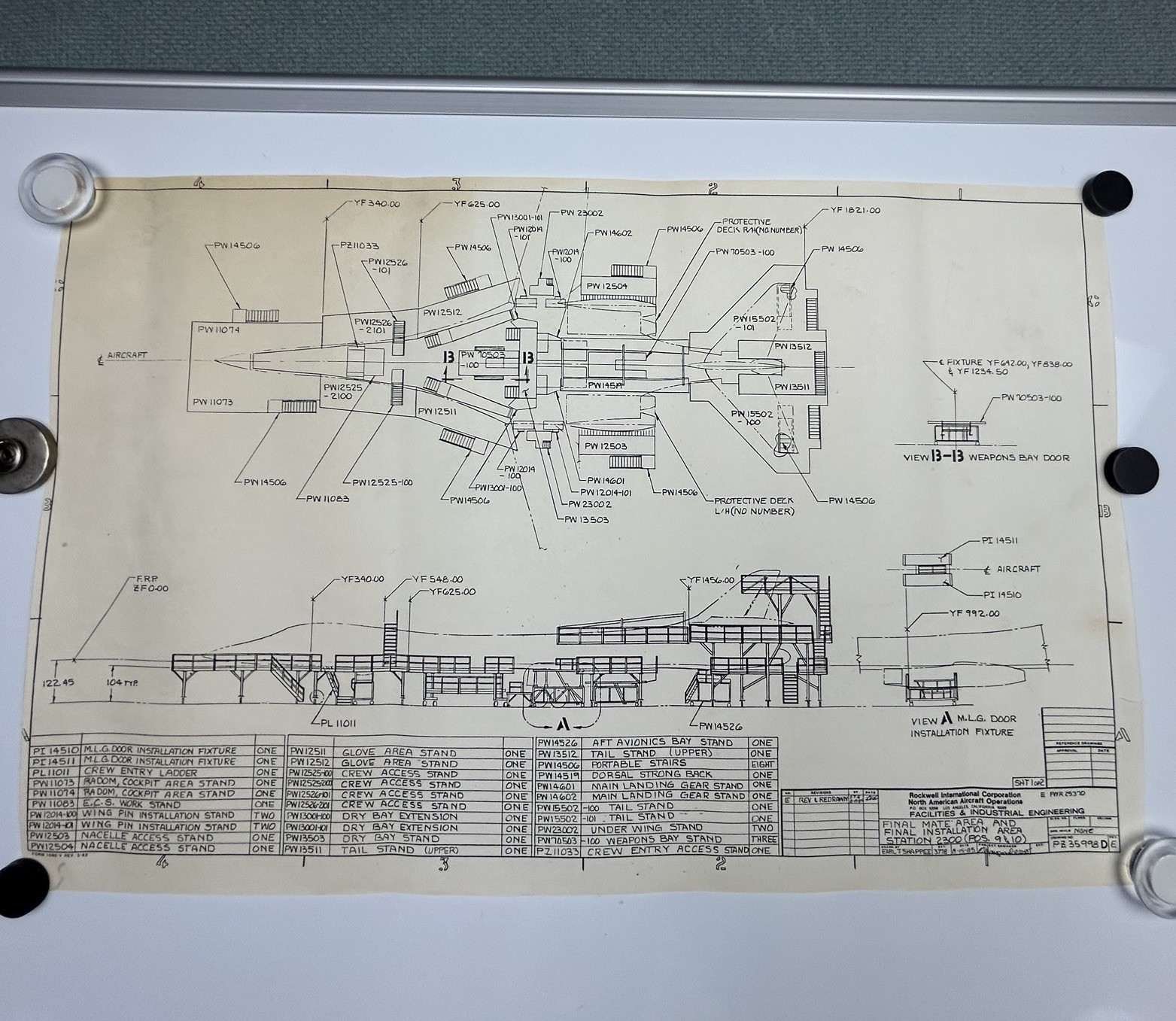

Lot of 15 vintage aerospace engineering blueprint/technical drawing prints from Rockwell International / North American Aircraft Operations, Facilities & Industrial Engineering.
These large-format technical prints document aircraft production and installation areas, tooling, fixtures and support equipment used in aircraft manufacturing/assembly operations. From the 80s. They measure approximately 17” wide x 11” tall
The lot includes drawings depicting areas and equipment such as:
• Fuselage Mate Area – Station 2200
• Final Mate Area / Final Installation Area – Station 2300
• Check Out Area – Station 2400
• Weapons bay stands and access equipment
• Landing gear stands
• Avionics bay stands
• Cockpit/crew access equipment
• Fuselage and tail stands
• Various production tooling, fixtures and installation equipment
The prints contain detailed aircraft layouts, station references, equipment identification numbers, dimensions and engineering information.
Organization: Rockwell International Corporation / North American Aircraft Operations
Department: Facilities & Industrial Engineering
Type: Vintage aerospace engineering/blueprint prints
Subject: Aircraft production, assembly and installation facilities
These are vintage technical drawing prints, not modern reproductions. The exact aircraft/program represented has not been independently verified, so I am not making a specific aircraft designation in this listing.
CONDITION: Vintage condition with age-related toning/discoloration, handling marks, creases, edge wear and/or other signs of storage and use. Please examine all photographs carefully. The photographs are considered part of the description.
These will be shipped in a tube
