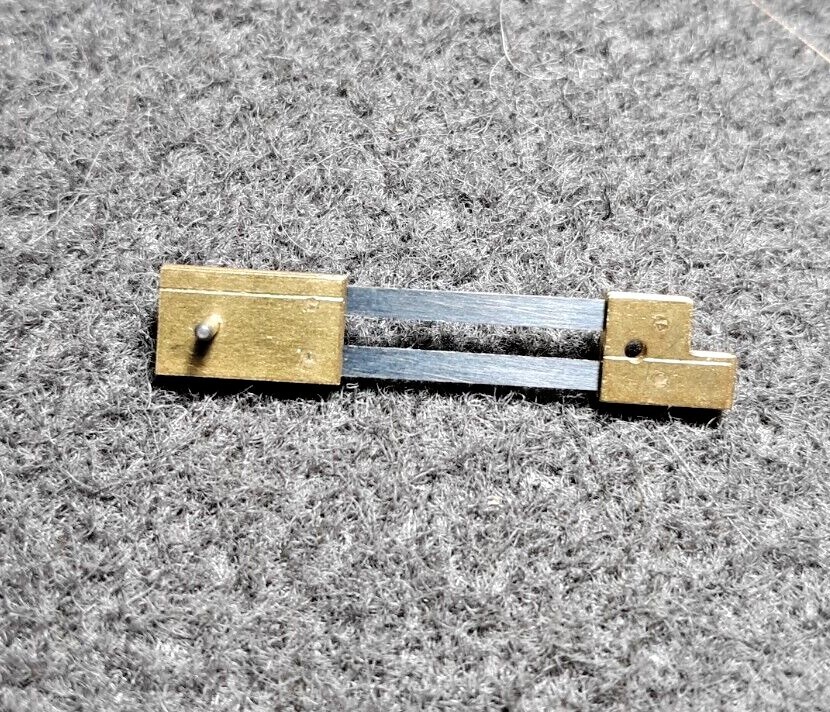

SUSPENSION SPRINGS FOR ANTIQUE PENDULUMCLOCKS
These are brand-new suspension spring. Made in Germany.
Please do not select a spring based on a picture; refer to the chart provided below.
FIND THE SIZE YOU NEED FROM THE LIST BELOW
GO TO THE DROP-DOWN MENU AND SELECT THE CORRESPONDING #
THEN CHOOSE YOUR QUANTITY
6" Suspension rod with spring attached (bend hook & cut to fit.)
Assortment pack has 25 feather suspension springs varying in thickness.
Brass connectors are available for the feathersuspension springs.
No. length & width hole-to-pin & spring thickness
# 1 14.5 mm / 8.0 mm 10.5 mm / 0.04 mm
# 2 15.5 mm / 8.0 mm 11.5 mm / 0.04 mm
# 3 16.5 mm / 8.0 mm 12.5 mm / 0.05 mm
# 4 17.5 mm / 8.0 mm 13.5 mm / 0.05 mm
# 5 18.5 mm / 8.0 mm 14.5 mm / 0.05 mm
# 6 19.5 mm / 8.0 mm 15.5 mm / 0.06 mm
# 7 20.0 mm / 8.0 mm 16.5 mm / 0.06 mm
# 8 18.5 mm / 8.0 mm 13.5 mm / 0.04 mm
# 9 15.0 mm / 8.0 mm 10.5 mm / 0.05 mm
# 10 17.0 mm / 8.0 mm 12.5 mm / 0.05 mm
# 20 18.0 mm / 10.0 mm 13.0 mm / 0.06 mm
# 21 21.0 mm / 10.0 mm 16.0 mm / 0.06 mm
# 21-6 17.5 mm / 8.0 mm 12.0 mm / 0.04 mm Hermle /Other
#21-100 17.5 mm / 8.0 mm 12.0 mm / 0.04 mm Hermle / Other
# 45 25 mm / 12mm 18 mm / 0.06 mm H.A.U.
# 131 25.5 mm / 4.0 mm 18.5 mm / 0.05 mmFrench/Japy / Other
# 132 25.5 mm / 4.0 mm 18.0 mm / 0.05 mmFrench/Japy / Other
# 202 18.0 mm / 8.0 mm 13.0 mm / 0.04 mm Urgos / Other
# 204 14.5 mm / 8.0 mm 10.5 mm / 0.04 mm Jauch / Other
# 311 25.0 mm / 5.0 mm 16.5 mm / 0.05 mm French /Japy / Other
# 312 28.5 mm / 5.0 mm 20.0 mm / 0.06 mm French/Japy / Other
# 313 31.5 mm / 6.0 mm 23.0 mm / 0.07 mm French/Japy / Other
# 314 20.25mm /5.0 mm 15.0mm / 0.07mm French /Japy / Other
If don't see the suspension spring you are lookingfor,wehave many more available.
