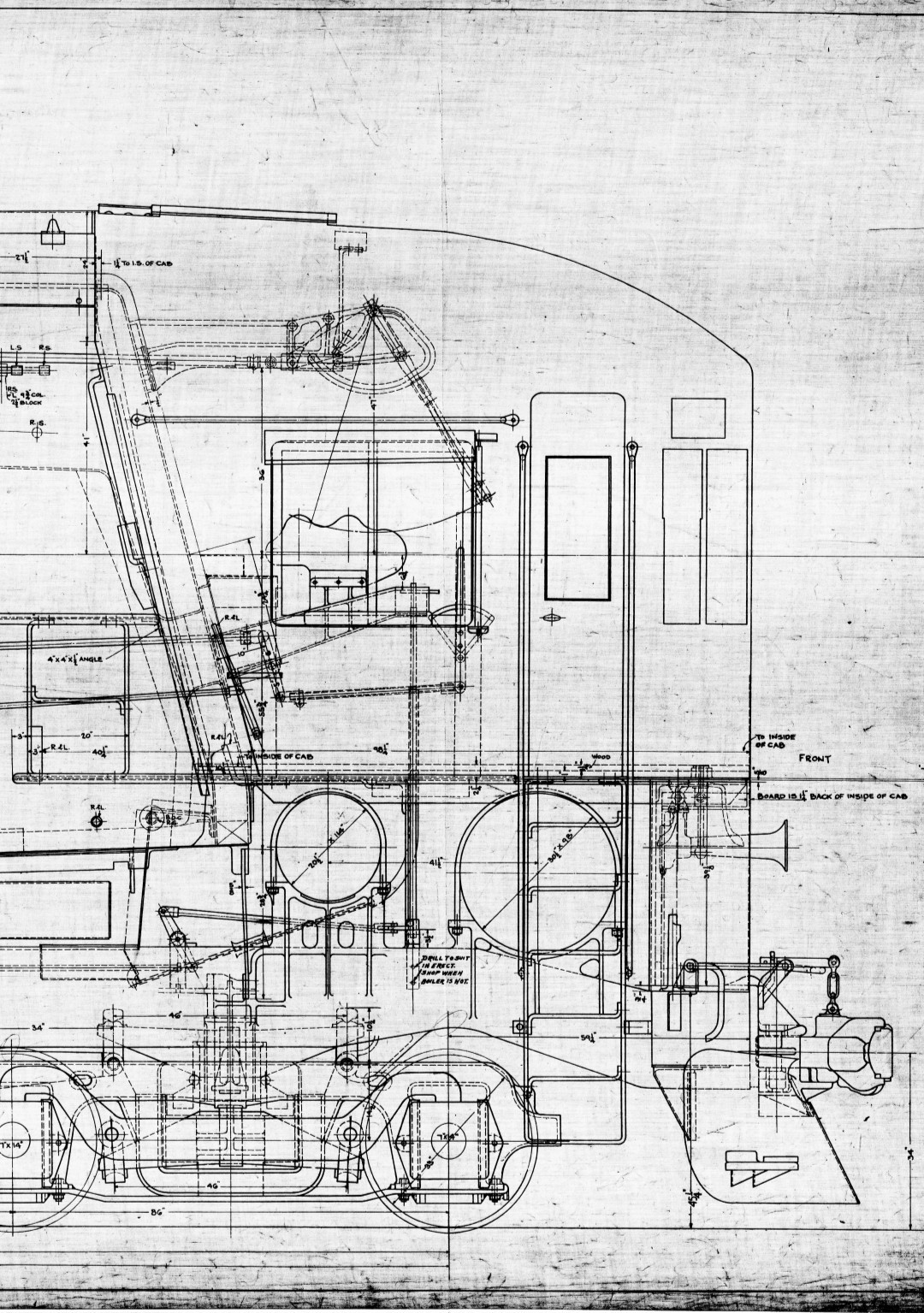

You are buying a newly printed erecting diagram blueprint drawing of a Southern Pacific SP AC-11/12 4-8-8-2 "Cab Forward" type steam locomotive. This is a newly made copy of the original railroad made erecting diagram which I have. This is the elevation/side view. These locomotives were built by the Baldwin Locomotive Works in 1944 and only the 4294 AC-12 class is the lone survivor of this truly unique locomotive design.
Drawn in 1½" scale, and measures close to 12 feet long x 30" high.
This will be delivered rolled up in a heavy cardboard tube.
If you plan on modeling one of these types of locomotives, or you need specific dimensions, these drawings are for you. DON'T MISS OUT.
Payment must be received 7 days from sale end or item will be relisted.
Parcel select will not include insurance, priority mail will include full insurance.
Shipping can be combined on multiple purchases.
Local pickup OK
International shipping will be handled by USPS international shipping. Some countries excluded due to
