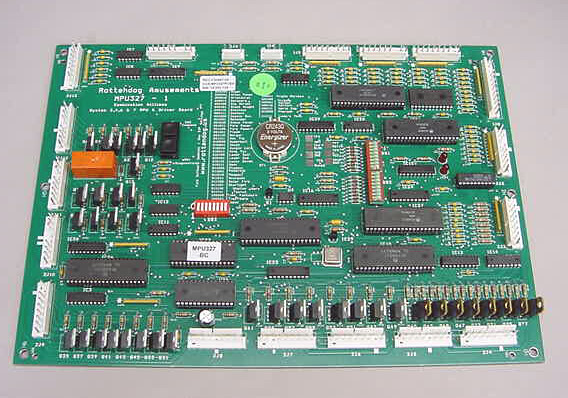

New MPU327–This board replaces both the MPU board AND the Driver board for ALL Williams System 3, 4, and 6 pinball games. Rottendog Made In The USA
Description
Part Number MPU327
Rottendog Replacement Board For Williams System 3 to 6 MPU/Driver Board. Made In The USA
MPU327–This board replaces both the MPU board AND the Driver board for ALL Williams System 3, 4, and 6 pinball games.
Benefits over original Williams MPU and Driver board
–Eliminates the extremely problematic interconnect connector that fastens the original boards together
–Eliminates the need to swap out game ROMs. Game ROMs are selectable via DIP switch
–Comprehensive on-board diagnostics using Leon’s test code via DIP switch.
–Uses 6802 instead of 6800 microprocessor
–Uses a single commercially available oscillator component for timing
–Uses Williams WPC style controlled lamp circuit design (TIP107)
–Uses Logic Level FET drivers for all solenoids and lamp controls
–Uses sockets for common failure components (micro, PIAs, and RAM).
–Uses a low voltage reset to keep microprocessor from locking up
This game does use custom software that is NOT compatible with your original game’s board set.
- Game Supported
- Algar
- Alien Poker
- Blackout
- Contact
- Disco Fever
- Fire Power
- Flash
- Gorgar
- Hot Tip
- Laser Ball
- Lucky Seven
- Phoneix
- Pokerino
- Scorpion
- Stellar Wars
- Time Warp
- Tri-Zone
- World Cup
