CONDITION:

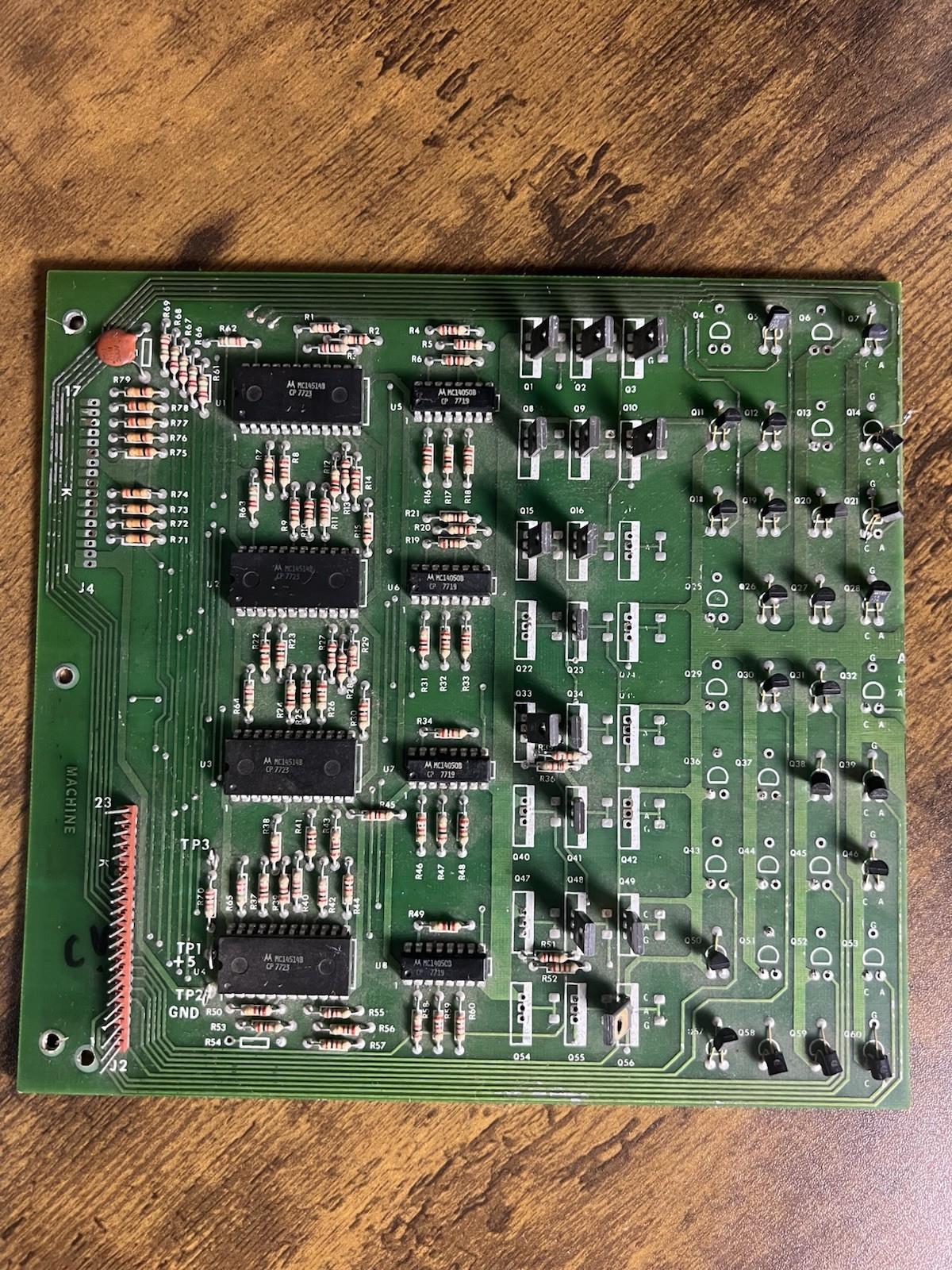

Original vintage Bally AS-2518-14 Rev. 2 lamp driver board.
Board is untested and operational condition is unknown. Shows normal age, dust, oxidation, solder wear and cosmetic wear from use/storage.
Several component positions are unpopulated as shown in the photos. No attempt has been made to repair or modify the board.
DESCRIPTION:
Original Bally lamp driver module used in early Bally solid-state pinball machines.
Board markings/components include:
• AS-2518-14 style lamp driver
• M-645-365
• Rev 2
• MC14514 decoder ICs
• MC14050 / 4050 buffer ICs
• Multiple SCR lamp driver positions
The AS-2518-14 was Bally’s early lamp driver board and is capable of controlling up to 60 individual lamp circuits.
Please compare the board number, connectors and component configuration with your machine before purchasing.
Only the circuit board shown in the photos is included.
Sold exactly as pictured.
