AUDIO-SEARS CORP TA-235/PT Earphone Element For Sale

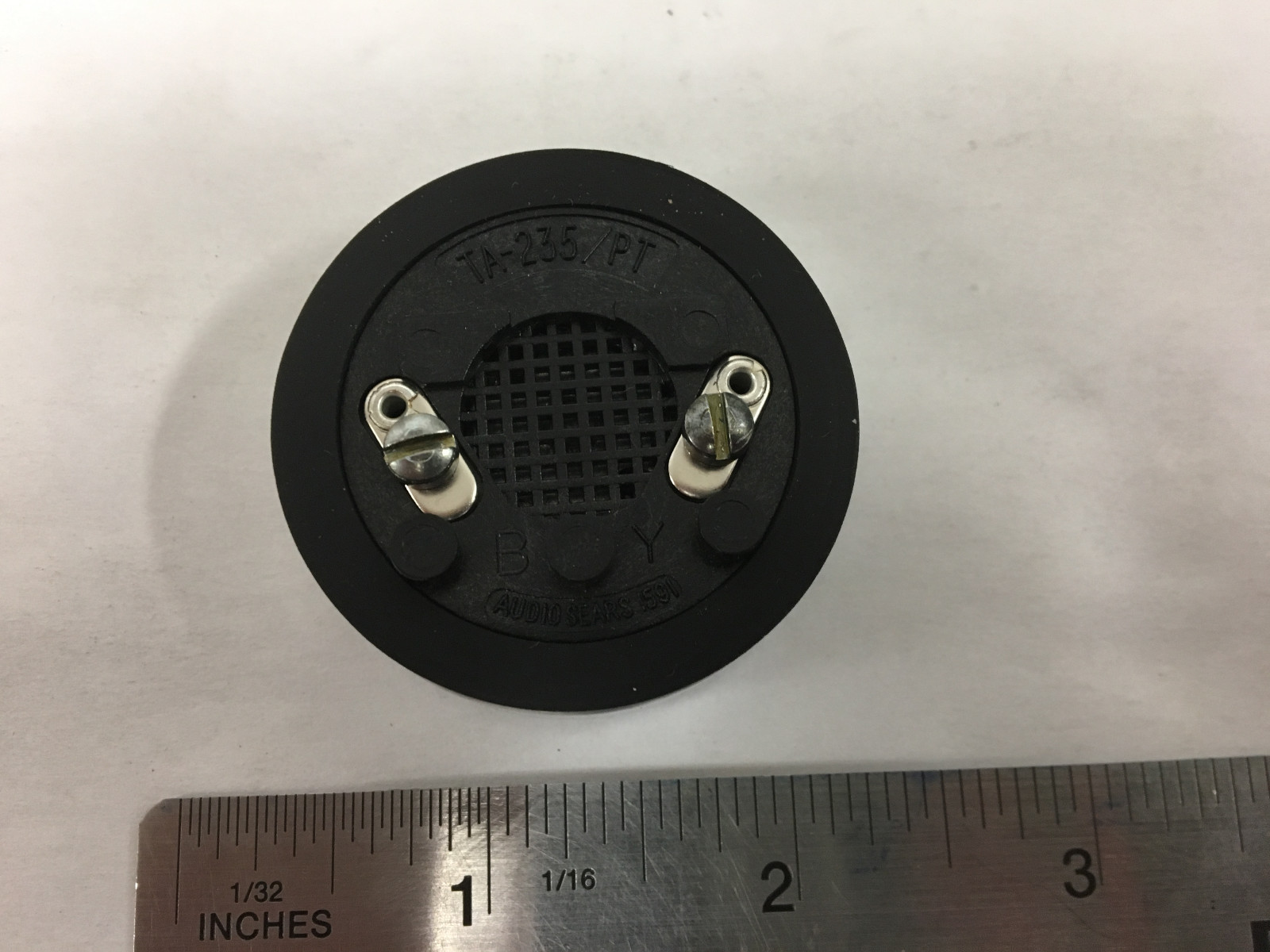

AUDIO-SEARS CORP TA-235/PT Earphone Element
NEW OLD STOCK
LOT 10799 C142AEARPHONE ELEMENT TYPE MAGNETIC BODY STYLE 3 EARPHONE ELEMENT, CIRCULAR OVERALL DIAMETER 1.822 INCHES MAXIMUM EARPHONE ELEMENT DEPTH 0.750 INCHES NOMINAL IMPEDANCE RATING IN OHMS 150.0 NOMINAL FREQUENCY RESPONSE RANGE IN HERTZ 500.0 TO 2500.0 ACOUSTIC SENSITIVITY REFERENCE RATING 1 VOLT PER MICROBAR OUTPUT SENSITIVITY RATING IN DECIBELS 72.0 SPECIAL FEATURES MAGNETIC TYPE ELEMENT HAS A DIAMETER OF 1.822 IN. BY 0.750 IN. DEEP; IMPEDANCE 150 OHMS NOMINAL; ELEMENT IS USED IN MIL-SPEC HANDSETS SUCH AS THE H-60/PT AND THE H-156/PT TEST DATA DOCUMENT 81349-MIL-H-11996 SPECIFICATION MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-H-11996 MANUFACTURERS CODE 81349 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE TA-235/PT
