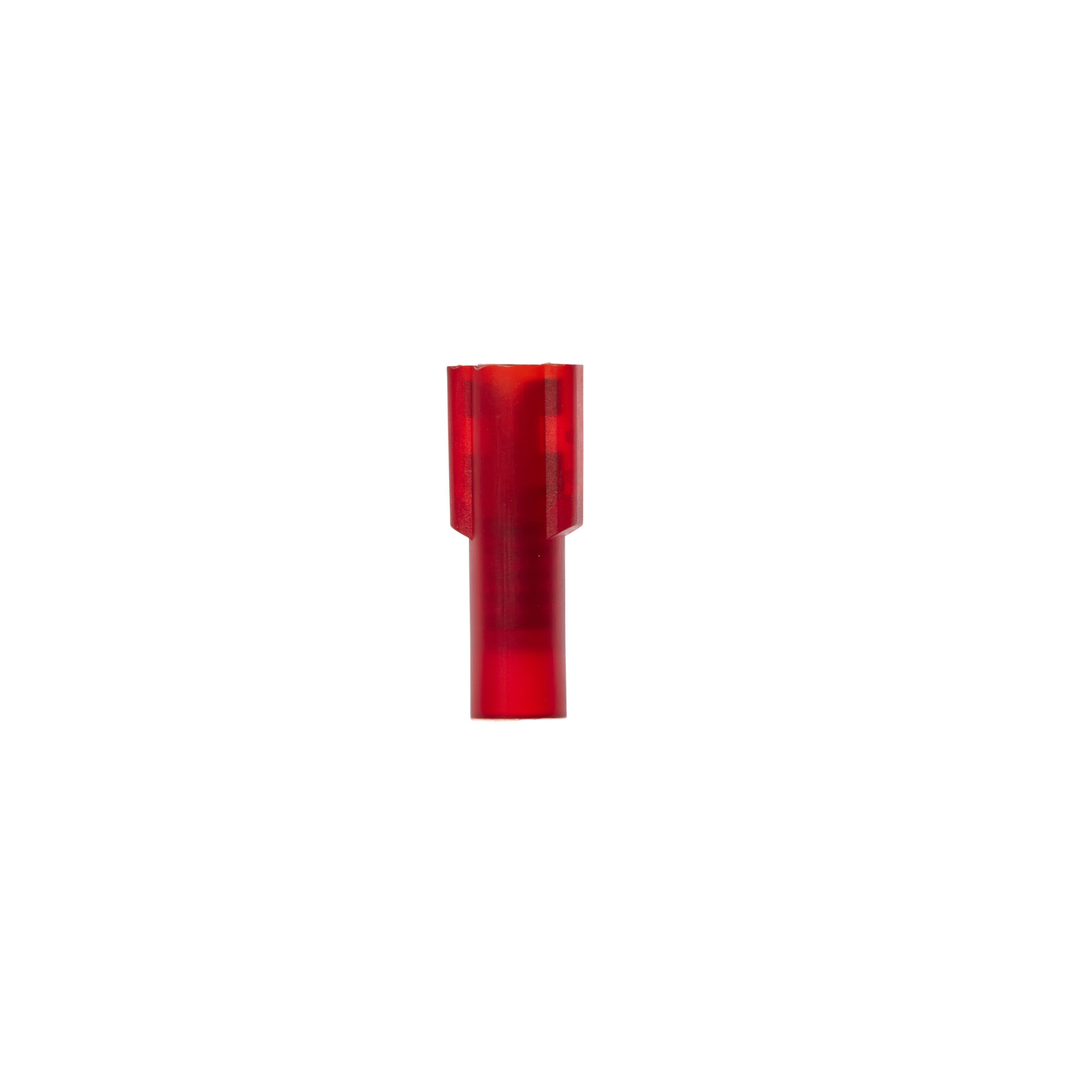

3M Highland Nylon Fully Insulated Female Disconnect TerminalFDI18-187Q For Sale

3M Highland Nylon Fully Insulated Female Disconnect TerminalFDI18-187Q

• Manufacturer:3M
• Part Number:7000133659

3M Highland Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Highland™ Nylon Fully Insulated Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping. RoHS 2011/65/EU Compliant.

• Nylon-insulated, butted-seam barrel offers easy insertion of wires
• Dents and rolled edges of this female disconnect terminal offer excellent holding force
• Allows for quick and easy disconnect of wires

Please allow 2 days for production. General Information BrandScotchlok™Barrel StyleButtedDisconnect TypeFemaleTerminal StyleFully InsulatedTerminal TypeDisconnectCountry Of OriginUnited StatesLead Time2 daysDimensions and Specifications Barrel Inside Diameter0.085 InchBarrel Length (Imperial)0.25 InchBarrel Length (Metric)6.35 mmConnection Width (Imperial)0.187 inConnection Width (Metric)4.75 mmDiameter (D)0.23 InchMates With Female Width0.187 InchMates With Male Tab Width (W\')0.187 InchMaximum Conductor Size (Imperial)18 AWGMaximum Conductor Size (Metric)1 mm²Maximum Insulation Outer Diameter (Imperial)0.145 inMaximum Insulation Outer Diameter (Metric)3.7 mmMaximum Insulation Outside Diameter0.145 inMaximum Recommended Voltage Rating600 VMaximum Voltage Rating600 to 1000 VMinimum Conductor Size (Imperial)22 AWGMinimum Conductor Size (Metric).34 mm²Overall Diameter (Imperial)0.23 inOverall Diameter (Metric)5.84 mmOverall Length (Imperial)0.81 inOverall Length (Metric)20.574 mmOverall Width (Imperial)0.3 inOverall Width (Metric)9.4 mmPad Width0.187 inTab Width0.187Barrel Length Imperial0.25 InchBarrel Length Metric6.35 mmConductor Sizes Imperial22 - 18 AWGMaximum Insulation Outer Diameter Metric3.7Overall Length Imperial0.81Other Details CSA File NumberLR22190Fastener OrientationFemaleMax. Number Of Cores414 UL File NumberE70512Units Per Case10.0Units Per Bag25Material and Composition Insulation MaterialNylonMaterialPlasticPackaging and Shipping Packaging25 per bag About the Manufacturer

At 3M, we apply science in collaborative ways to improve lives daily.

3M is a global science company that never stops inventing. Using 46 technology platforms, our integrated team of scientists and researchers works with customers to create breakthroughs. Our inventions have improved daily life for hundreds of millions of people all over the world. With $30 billion in sales, our 90,000 employees connect with customers all around the world. Scientists, researchers and marketers work across countries and across subjects to solve challenges big and small. Bulk Pricing

For customers who wish to order large quantities of this item and would like to receive bulk pricing, please contact us directly and we will provide the best price possible.
