Features & DetailsDOUBLE ACTING- Our hydraulic control valve is made for operating double-acting cylinders.DURABLE QUALITY- This hydraulic directional control valve comes with 1 spool and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.HIGH PERFORMANCE- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.SPRING RETURN- All spool valves come with spring return, which can return to the neutral position.WIDELY USED- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.Key Features Visit my Store to see items that you like.
1Spool Hydraulic Directional Control Valve 11GPM Monoblock Double Acting
Features & Details
DOUBLE ACTING- Our hydraulic control valve is made for operating double-acting cylinders.
DURABLE QUALITY- This hydraulic directional control valve comes with 1 spool and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.
HIGH PERFORMANCE- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
SPRING RETURN- All spool valves come with spring return, which can return to the neutral position.
WIDELY USED- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
Key Features
Solid Construction
Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.
High Performance
The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
Spring Return
All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
Inner Check/Relief Valve
The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.
Multiple Control Ways
We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.
Wide Application

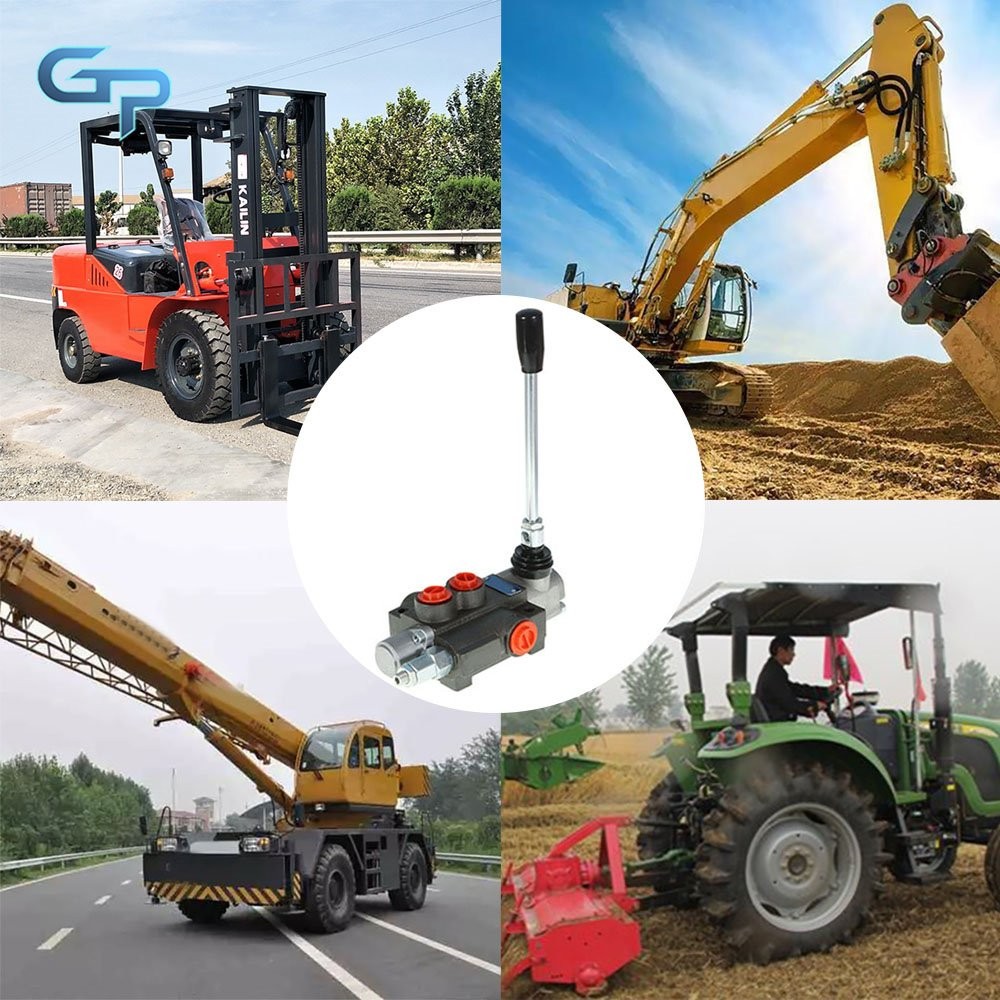

The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
1 Spool Directional Hydraulic Control Valve
The compact design of 1 Spool valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.
Specifications
Max operating pressure: 3600 PSI
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 3/8" BSPP
P, T, N port: 1/2" BSPP
Weight: 7lb (3kg)
Dimensions (L* W* H): 8.66"*4.92"*3.94" (22*12.5*10 cm)
Package Content
1 x 1 spool hydraulic directional control valve 11gpm double acting cylinder spool
Item SpecificsCountry of Origin United StatesBrand greatpartsMPN GRE118655Spool Count 1-SpoolValve Operation ManualMaximum Flow Rate 1gpm (40l/min)Maximum Pressure 3500 psiPort Diameter 1/2" BSPPSuitable Media HydraulicCustom Bundle NoBundle Description NoModified Item NoModification Description NoWarranty 2 YearsMax operating pressure P = 3600psi(250bar);T=150psi (10bar);A,B=4300p
