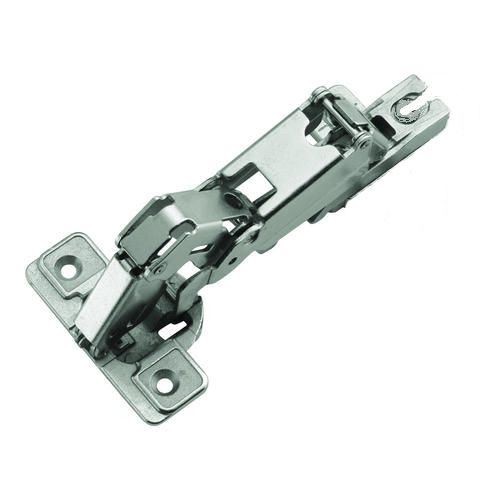

For cabinets with overlay doors. 165 Degree Slide-On Euro Hinge
Gets door completely out-of-the-way for slide-outs and trays
00 mm Mounting Plates Sold Separately: LQ-H16004-NP-A or LQ-H16002-NP-ALiberty Hardware's part number on the cup of the hinge is 165A48
- TECHNICAL SPECIFICATIONS
- Depth of metal cup 11.3mm
- Cup diameter 35mm
- Opening 165 degrees
- 00 Crank overlay See Mounting Plates below
- Able to drill door (K) from 3 to 7 mm
- Self closing
- Thickness of door(t) from 16 to 26mm
- Finish: Nickel Plated
Belwith/ Hickory Hardware Brand
Same as Menard's P5120 Hinge
SEE TECHNICAL INFORMATION FOR CORRECT SCREWS.
