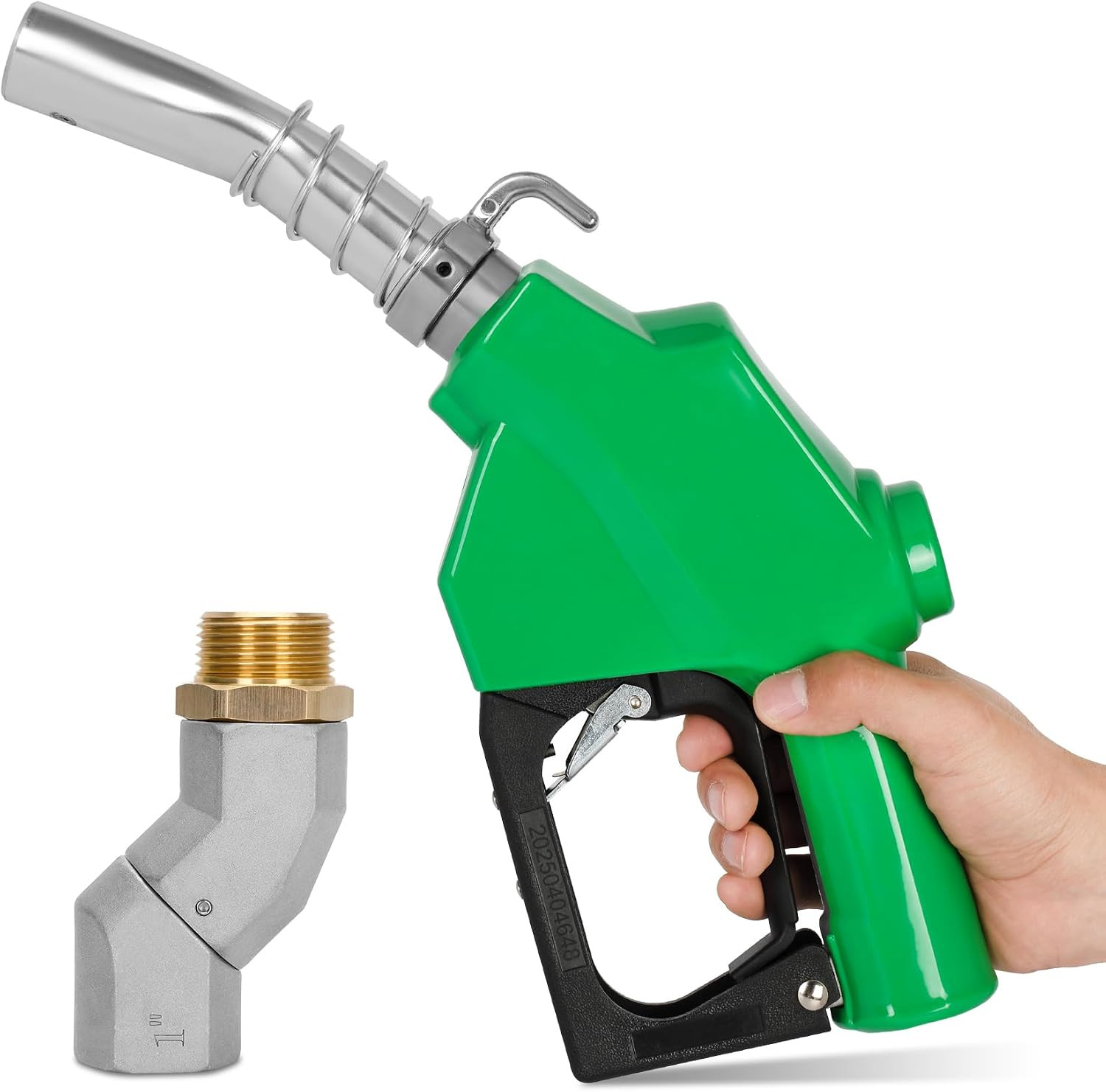

1'' Fuel Nozzle with Hose Swivel & Hook, Max Flow 30GPM, 3-Speed Latch Auto Shut off 19/16"(Od=30Mm), Automatic Aluminum Alloy Fuel Nozzle for Gasoline, Diesel, Biodiesel, KeroseneDescription Model Number 1 inch NPT Auto Fuel Nozzle Hook Swievl Number of Packs 1 Unit Count 1 Count Number of Items 1 Included Components 1 inch npt swievl Number of Pieces 1 Material Type Aluminum Exterior Finish Aluminum Inlet Connection Type National Pipe Tapered Outlet Connection Type NPT Maximum Pressure 3.5 bar Number of Ports 2 Thread Size 1-3/16 inches Thread Type NPT Connector Type Threaded Valve Type Fuel Nozzle Item Dimensions 15.23 x 2.36 x 7.48 inches Inlet Connection Size 1-3/16 inches Outlet Connection Size 1 inches Size 1 Inch Material Aluminum Item dimensions L x W x H 15.23 x 2.36 x 7.48 inches Maximum Operating Pressure 3.5 bar
Product description 1\" Automatic Fuel Nozzle Please NOTE:
1.Make sure the working pressure of the refueling nozzle is 0.02-0.35MPa !!
2.Make sure that the self-sealing hole of the fuel nozzle is not blocked !
3.Keep the nozzle perpendicular to the floor and do not tilt !
Pure copper valve body
1.Low TEMP and cold resistance
2.Stable flow
3.Prevent oil leakage
automatically shuts off when oil is full
1.Highly sensitive head
2.Sensor port
3.aluminum alloy body
NPT threat
Adapt to various connectors:
1.universal joint
2.Intermediate joint
3.New joint and old joint
Product Specification: Material Aluminum alloy Color Green Inlet size 1” NPT Outlet size 1-3/16” Speed Range 12-120L/Min Working Pressure 0.02-0.35MPa Temperature range -25 °C to +60 °C Package 1 x fuel nozzle
- 【AUTO SHUT OFF FUNCTION】: This 1 inch fuel nozzle will automatic shut off when the tank is full, The working pressure of this refueling nozzle is 0.02-0.35MPa.
- 【PRODUCT SIZE】: The size of the oil inlet of this automatic fuel nozzle is 1 inch NPT, the size of the oil outlet is 1-3/16 inches, and the Max flow rate is 120L/min.
- 【HIGH QUALITY】: This 1 inch fuel nozzle is made of high-quality aluminum alloy, and has undergone hundreds of testing procedures to ensure that the fuel transfer nozzle can be used for a long time and is safe.
- 【NOTE】: This 1 inch green fuel nozzle can be filled with diesel, gasoline, kerosene. Before use, please check whether the self-sealing hole of the fuel nozzle is blocked, and keep the self-sealing hole unobstructed.
- 【100% SATISFACTION GUARANTEED】：The fuel nozzle have a one-year warranty. If for any reason you are unsatisfied with your purchase, please contact us and we will respond within 24 hours with a solution.
