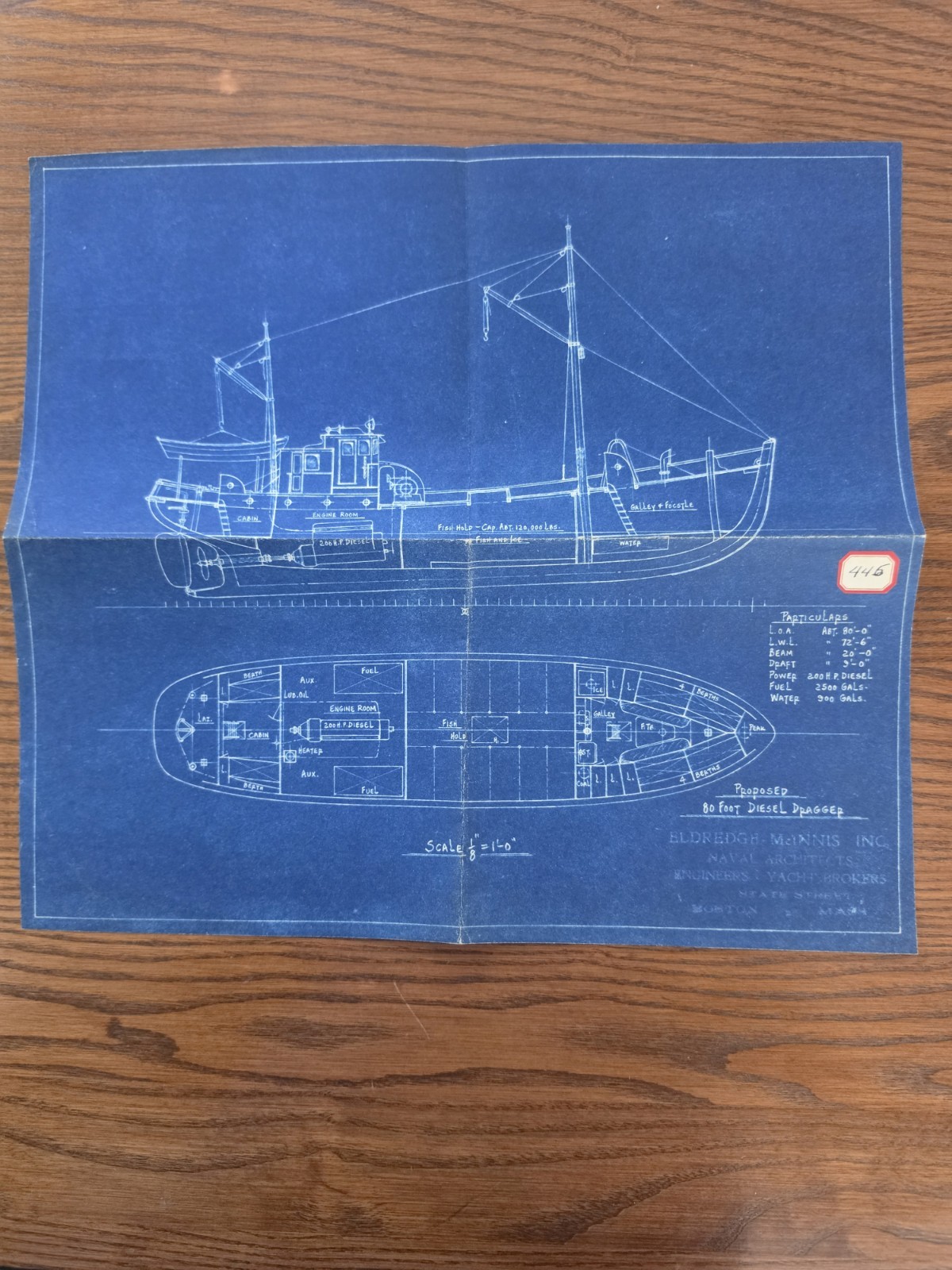

Original vintage blue and white architectural blueprint featuring a Proposed 80-Foot Diesel Dragger, designed by the renowned firm Eldredge-McInnis, Inc. (Naval Architects, Engineers & Yacht Brokers) located in Boston, Massachusetts.
Item Details:
Subject: 80 Ft. Diesel Fishing Dragger / Trawler
Designers: Eldredge-McInnis Inc., Boston, MA
Scale: 1/8" = 1'-0"
Particulars Listed:
Length Overall (L.O.A.): Approx. 80'-0"
Length Waterline (L.W.L.): Approx. 72'-6"
Beam: 20'-0"
Draft: 9'-0"
Power: 200 H.P. Diesel
Fuel: 2,500 Gals.
Water: 900 Gals.
Fish Hold Capacity: Approx. 120,000 lbs. (Fish and Ice)
Vintage condition with original folds as shown in photos. Clean paper with crisp line work. Perfect for framing, maritime collections, or nautical decor. Please review all photos for exact condition details.
