Double VANOS Camshaft Timing Locking Tool Kit for BMW M52 M52TU M54 M56 For Sale

Double VANOS Twin Camshaft Alignment Timing Locking Tool Kit for BMWProfessional Engine Timing & Camshaft Locking Tool Set for BMW M52, M52TU, M54 & M56 Engines

This Double VANOS Twin Camshaft Alignment Timing Tool Kit is designed for accurate camshaft positioning, crankshaft locking, and engine timing maintenance on compatible BMW engines.

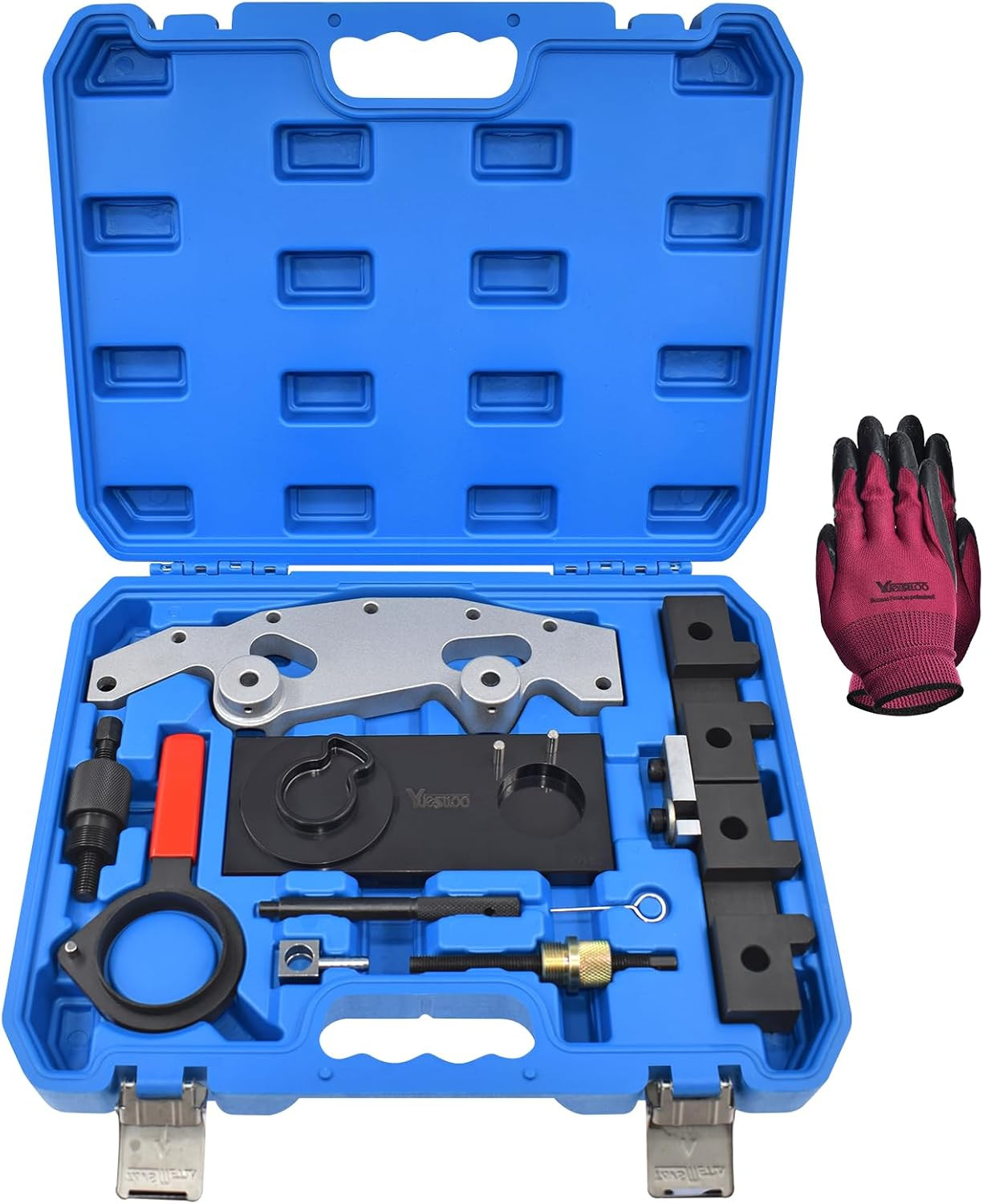

The comprehensive tool set includes specialized camshaft alignment fixtures, sprocket assembly tools, chain tensioner components, a VANOS turning wrench, and a Top Dead Center (TDC) locking pin.

Ideal for timing chain replacement, VANOS system servicing, cylinder head repairs, and related engine maintenance procedures.

Features & Benefits

Precision Camshaft Alignment: Helps maintain proper camshaft positioning during engine timing adjustments and timing chain servicing.

VANOS System Servicing: Includes specialized tools for compatible BMW Single VANOS and Double VANOS engine timing procedures.

Crankshaft TDC Positioning: The included locking pin assists with positioning the crankshaft at Top Dead Center during engine maintenance.

Camshaft Sprocket Alignment: Specialized alignment and assembly fixtures help maintain correct positioning of timing components.

Chain Tensioner Tools: Includes a rigid chain tensioner and tensioner locking pin to assist with timing chain servicing.

Heavy-Duty Steel Construction: Manufactured from high-hardness steel for strength, durability, wear resistance, and corrosion resistance.

Convenient Storage Case: Includes a portable carrying case to keep tools organized, protected, and easy to transport.

Protective Gloves Included: Supplied with a pair of gloves for added convenience during automotive maintenance.

BMW Engine Compatibility

Double VANOS Engines:

• BMW M52TU

• BMW M54

• BMW M56

Additional Compatible Engine Applications:

• BMW M42

• BMW M44

• BMW M50

• BMW M52

• BMW MS50US

• BMW S50US

• BMW S52US

Individual tools support different engine configurations. Not every included tool is applicable to every listed engine.

Included Timing Tools

116150 — Camshaft Alignment Jig

Helps maintain accurate camshaft positioning during engine timing procedures.

116180 — Sprocket Assembly Jig

Assists with positioning and aligning camshaft sprocket components during timing system assembly.

114220 — Rigid Chain Tensioner

Provides controlled chain tension during applicable engine timing procedures.

113292 — Chain Tensioner Locking Pin

Helps secure the timing chain tensioner during servicing.

113450 — VANOS Compressed Air Connection

Designed for applicable VANOS system servicing procedures.

113240 — Camshaft Locking Fixture

Helps secure camshafts in their required positions during engine timing maintenance.

112300 — Top Dead Center Locking Pin

Assists with locking the crankshaft at the correct TDC position.

115490 — VANOS Turning Wrench

Designed for Single VANOS timing chain sprocket adjustment on compatible BMW M52 engines.

Additional Accessories:

• Portable Carrying Case

• Protective Gloves

Important VANOS Wrench Compatibility

The included 115490 VANOS Turning Wrench is intended for the Single VANOS timing chain sprocket found on compatible BMW M52 engines.

The 115490 wrench is NOT suitable for Double VANOS timing chain sprockets on BMW M52TU or M54 engines.

Other components in the kit are designed for compatible Double VANOS engine timing procedures.

Common Applications

• Camshaft alignment and locking

• Crankshaft Top Dead Center positioning

• Timing chain replacement

• VANOS system servicing

• Camshaft sprocket alignment

• Chain tensioner adjustment

• Engine timing inspection and adjustment

• Cylinder head servicing

• Engine maintenance and rebuilding

OEM Equivalent Tool Reference Numbers

• 116150

• 116180

• 114220

• 113292

• 113450

• 113240

• 112300

• 115490

Reference numbers are provided for tool identification and compatibility purposes.

Product Specifications

• Product Type: Double VANOS Twin Camshaft Alignment Timing Tool Kit

• Vehicle Make: BMW

• Primary Engine Families: M52 / M52TU / M54 / M56

• Additional Applications: M42 / M44 / M50 / MS50US / S50US / S52US

• Material: High-Hardness Steel

• Finish: Corrosion-Resistant

• Primary Functions: Camshaft Locking, Crankshaft Positioning, VANOS Servicing and Timing Chain Alignment

• Storage: Carrying Case Included

• Accessories: Protective Gloves Included

Important Compatibility Information

This timing tool kit contains specialized tools for multiple BMW engine configurations, including Single VANOS, Double VANOS, and selected non-VANOS engines.

Compatibility depends on the specific engine variant, model year, VANOS system, and required OEM tool reference numbers.

BMW M52TU, M54, and M56 engines use Double VANOS systems, while earlier M52 engines generally use Single VANOS.

Please verify your vehicle's engine code and required timing tool specifications before purchasing.

A comprehensive BMW engine timing tool kit designed for precise camshaft alignment, dependable VANOS servicing, and efficient timing chain maintenance.
