Consolidated PB2Y Coronado Maintenance Manual & report Flying Boat RARE Archive For Sale

Consolidated Coronado archive

Aircraft Manual & Period Test Report

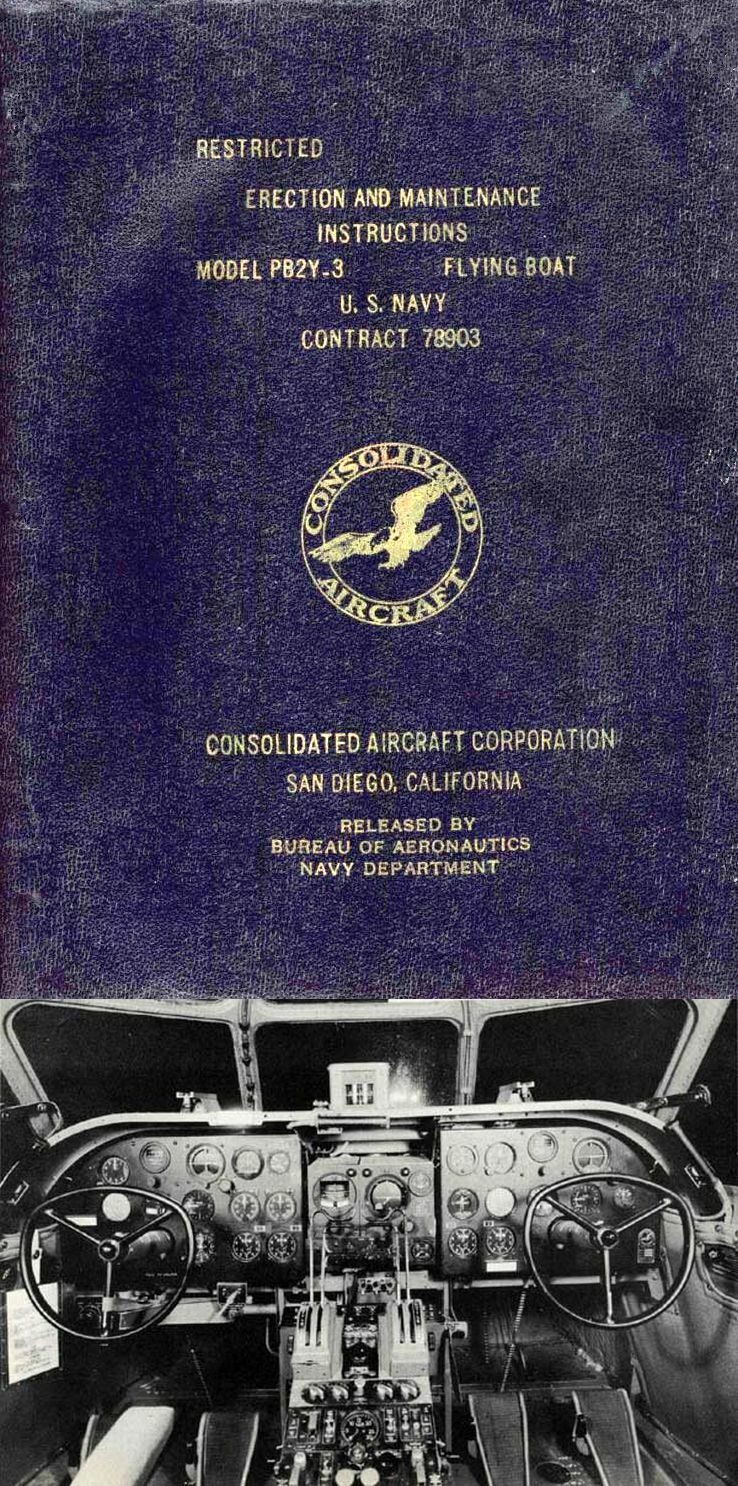

Erection Maintenance Manual PB2Y-3 Consolidated ZE-29-008 1942. 540 very detailed pages

NACA test Report Coronado PB2Y3 dated 1946 > Hull types tests 30 pages

contains detailed factory photographs, technical descriptions , illustration schematics, period data, etc ..

RARE . ARCHIVED TO COMPUTER DISC DVD or download

coverage of the structure,fuselage,wings,systems, maintenance , schemtics, plans , phtogaphs,

inspection checks, fuel, oil ,controls,landing gear,etc.. pictorial diagrams, . data and more.

A rare technical aviation documents on easy use computer disc (pdf) for all computers. Specially archived rare material

Part of history preserved forever. Digital computer .ned to produce the actual document

onto computer DVD PDF for full viewing part/total print out.

select zero free shipping option for download issue

secure download with that option only

PB2Y Coronado was a large flying boat patrol bomber designed by Consolidated Vultee Aircraft, used by the US Navy & RAF during World War II in bombing, antisubmarine, and transport roles

After deliveries of the PBY Catalina, the United States Navy began planning for the next generation of patrol bombers. Orders for two prototypes, the XPB2Y-1 and the Sikorsky XPBS-1, were placed in 1936; the prototype Coronado first flew in December 1937 Coronados served in combat in the Pacific with the United States Navy, in both bombing and antisubmarine roles. PB2Y-5 Coronados carried out four bombing raids on Wake Island between 30 January and 9 February 1944.[3] However, most served as transport and hospital aircraft.The British Royal Air Force Coastal Command had hoped to use the Coronado as a maritime patrol bomber, as it already used the PBY Catalina. However, the range of the Coronado (1,070 miles) compared poorly with the Catalina (2,520 mi), and the Short Sunderland (1,780 mi). Consequently, the Coronados supplied to the RAF under Lend-Lease were outfitted purely as transports, serving with RAF Transport Command. The 10 aircraft were used for transatlantic flights, staging through the RAF base at Darrell\'s Island, Bermuda, and Puerto Rico, though the aircraft were used to deliver vital cargo and equipment in a transportation network that stretched down both sides of the Atlantic, from Newfoundland, to Brazil, and to Nigeria, and other parts of Africa. After the war ended five of the RAF aircraft were scrapped, one was already lost in collision with a Martin PBM Mariner and the last four were scuttled off the coast of Bermuda in 1946Coronados served as a major component in the Naval Air Transport Service (NATS) during World War II in the Pacific theater. By the end of World War II, the Coronado was outmoded as both a bomber and a transport, and virtually all of them were quickly scrapped by the summer of 1946, being melted down to aluminum ingots and sold as metal scrap, or used as targets for fighter gunnery practice

Powerplant: 4 × Pratt & Whitney R-1830-92 radial engines,

Important notes * IMAGE QUALITY NOTE; T . archive , samples as shown , the . condition of this material dictates the final quality achievable.all archives are legible/serviceable.Some loss / fading is present. Archives are produced to the best standards possible Item is shipped as soon as possible .discs are with guarantee for operation

see my shop for more period archives

ARCHIVES ARE ON COMPUTER DISC MEDIA CD/DVD UNLESS STATED OTHERWISE

THIS LIMITED PRODUCTION RUN IS WITH A PLAIN LABEL, With old archives of this nature some loss / fading/appropriated ageing maybe present in the transfer, this transfer is good quality ..

Absolutely no Misappropriation can be laid at the this material in any shape or form. they are historically accurate no indemnity will apply for end use

The accuracy or completeness of documents is not guaranteed they are historically accurate to produced date, These archived works are excellent reference material for project modellers etc.. Indeed anyone with a interest in historic items such as these. material maybe from public domain obsolete aircraft,ordanance etc..
