WHAT IS IT:

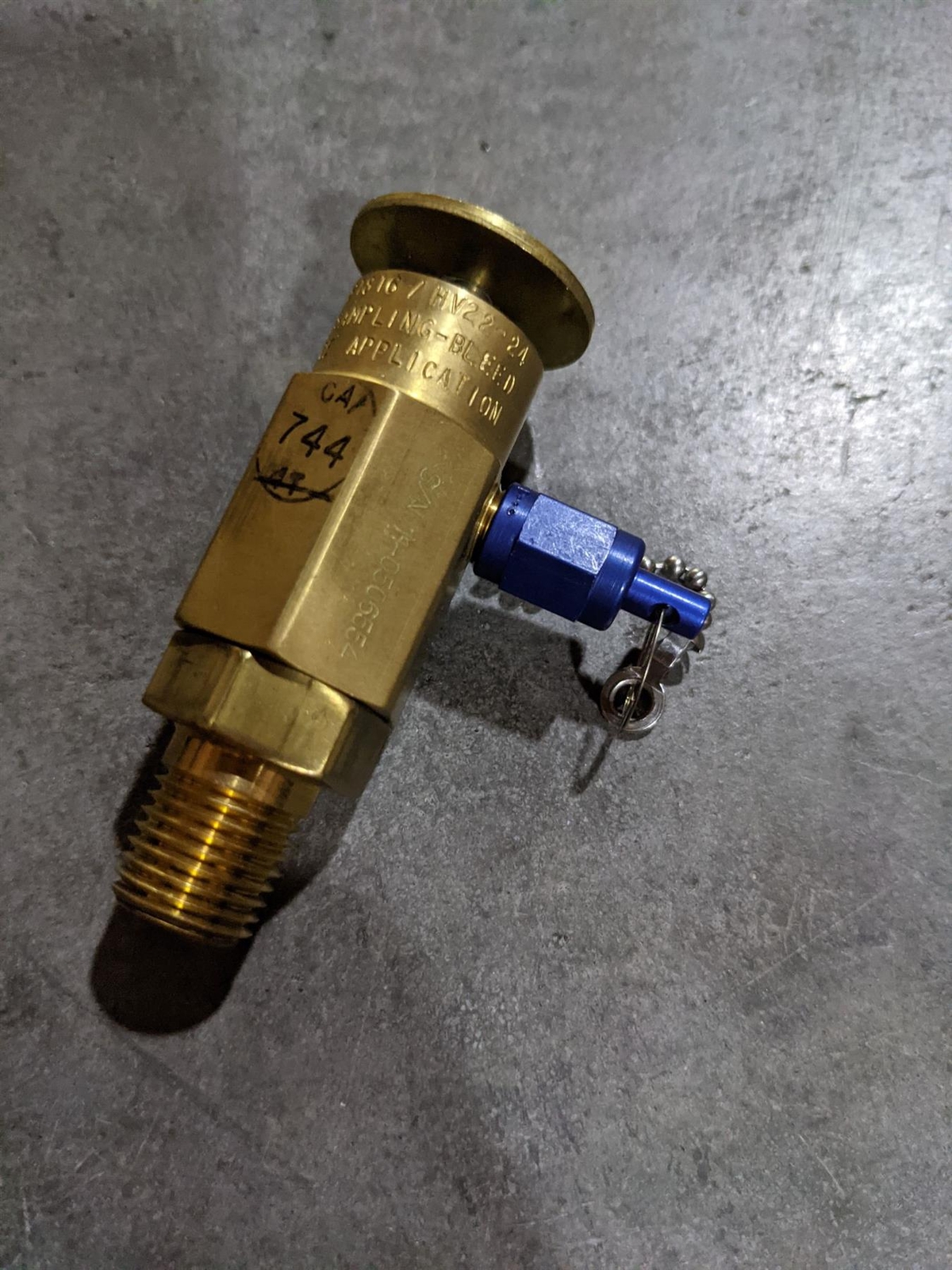

Bleeder Valve Hydraulic System 12334360 Military Surplus NOS 4820-01-120-4532

Bleeder Valve HV22-24 Circle Seal 4820-01-120-4532, 12334360

P59-500, Circor Aerospace Bleeder Valve

DETAILS - SPECS:

MATERIAL ALUMINUM ALLOY BODY

STYLE DESIGNATOR A7 ANGLE

FLOW CONTROL DEVICE DISK

MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

MAXIMUM OPERATING TEMP 275.0 DEG FAHRENHEIT SINGLE RESPONSE

VALVE OPERATION METHOD MANUAL

CONNECTION TYPE THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL TUBE 2ND END

CONNECTION STYLE G46B PLAIN 1ST END G42 FLARED 2ND END

SEAT ANGLE 45.0 DEGREES 2ND END

THREAD SERIES DESIGNATOR NPT 1ST END UNF 2ND END

NOMINAL THREAD SIZE 0.250 INCHES 1ST END 0.313 INCHES 2ND END

THREAD CLASS 3A 2ND END

THREAD DIRECTION RIGHT-HAND ALL ENDS

FURNISHED ITEMS AND QUANTITY 1 CHAIN AND 1 CAP

SPECIAL FEATURES WEAPON SYSTEM ESSENTIAL

CRITICALITY CODE JUSTIFICATION FEAT

III END ITEM IDENTIFICATION 2320-01-097-0248,2320-01-097-0249 ,2320-01-100-7672,2320-01-097-026 0,2320-01-195-7641 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)

MANUFACTURERS CODE 19207

MFR SOURCE CONTROLLING REFERENCE 12334360

CONDITION:

NEW

MPN:

HV22-24

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

C55871, C5-587-1, HV2224, HV22-24, P59500, P59-500, 10086279 , 12334360, 4820-01-120-4532, 01-120-4532, 4820011204532, 011204532

12334360 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

C5-587-1 72352 CURTISS-WRIGHT FLOW CONTROL CORPORATION

C5-587-1 86768 TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC

P59-500 90614 CELANESE PLASTICS CO DIV OF CELANESE CORP

P59-500 91816 CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS

APPLICATION - USED ON IN - WHAT IS IT FOR:

U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM BFVS ARMORED COMBAT EARTHMOVER (M9) COMPACTOR, HIGH SPEED; TAMPING SELF-PROP CRANE, TRUCK MOUNTED; HYL 25-TON CAT (CC NAC GROUP C55871)
